DTA-2111 Features

• Multi-standard modulator for PCI Express with support for most QAM-, OFDM- and VSB-based modulation standards
• Digital upconversion for excellent signal quality without need for calibration
• Supports all constellations and modulation modes for each supported standard
• All-channel upconverter 36 .. 1002MHz fully agile over VHF and UHF band
• Digital channel simulator option
• RF output for direct connection to the an-tenna input of a digital receive
• Free Windows and Linux SDK (DTAPI) is fully compatible with other DekTec digital-video output adapters
• PCI Express v1.1; Label PCIe 1x

DTA-2111 Applications

• General-purpose modulator for R&D, demos, repair, at shows and exhibitions, etc.
• Digital TV distribution over coax: SMATV, hotels, hospitality, campus, buildings, etc.
• Custom OEM applications that benefit from direct RF output

PC Requirements

• P4@2GHz minimum, or equivalent AMD
• Core 2@2GHz minimum for ISDB-T, CMMB, DTMB, DVB-C2, DVB-T2 and channel simulation
• 512 MB RAM minimum

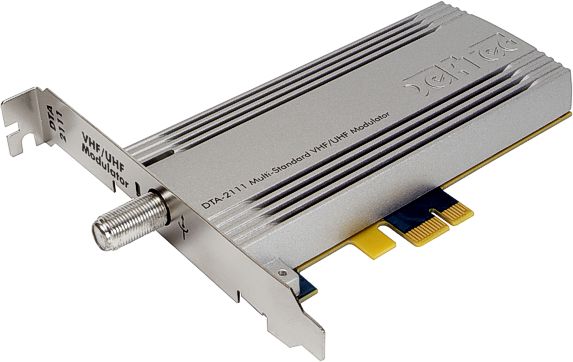

Appearance
