TVB599A, The Premium USB digital streaming DTV modulator, can play MPEG stream from hard disk and DVB-ASI/SMPTE-310M input into on-air signal. The output can be industry standard 55~2150MHz selectable RF signal. On board synthesizer can generate stable and accurate symbol clock and tuning frequency. The transport stream can be supplied through USB interface and DVB-ASI/SMPTE-310M input.

Features

- Transport stream from hard drive thru USB interface and DVB-ASI/SMPTE-310M input
- DVB-ASI, SMPTE-310M output for monitoring
- On board VHF/UHF/L-BAND RF output up-converter
- Programmable RF output level (0.1dB step)
- Superposition white noise over modulated signal and control the output C/N ratio
- SDK for Windows 2000/XP(32/64bit)/Vista(32/64bit)/7(32/64bit) WDM and Linux
- CMMB, DVB-T/DVB-H, ATSC 8VSB, QAM(DVB-C & USA-QAM), DVB-S/DVB-S2, T-DMB, ISDB-T, ISDB-S, DTMB, ATSC-M/H, DVB-T2 and DVB-C2 modulation option available
- Free 0dBm amplifier option

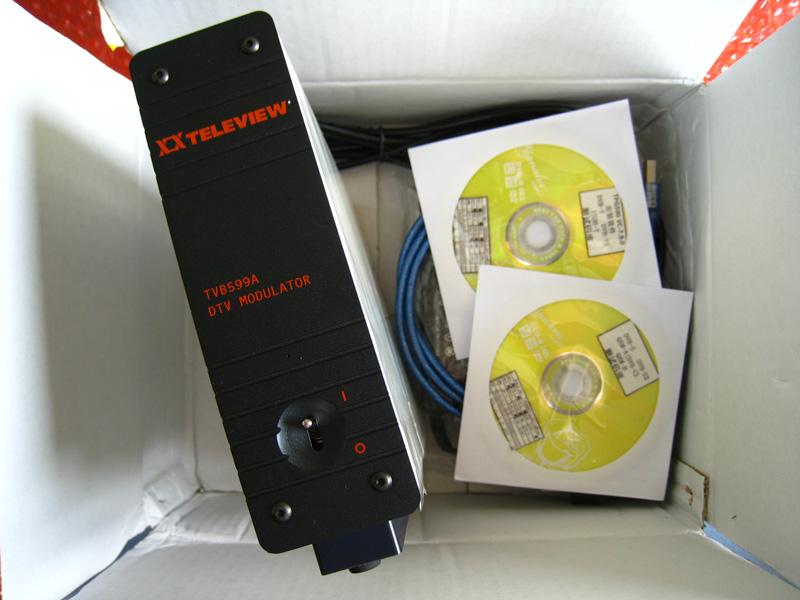

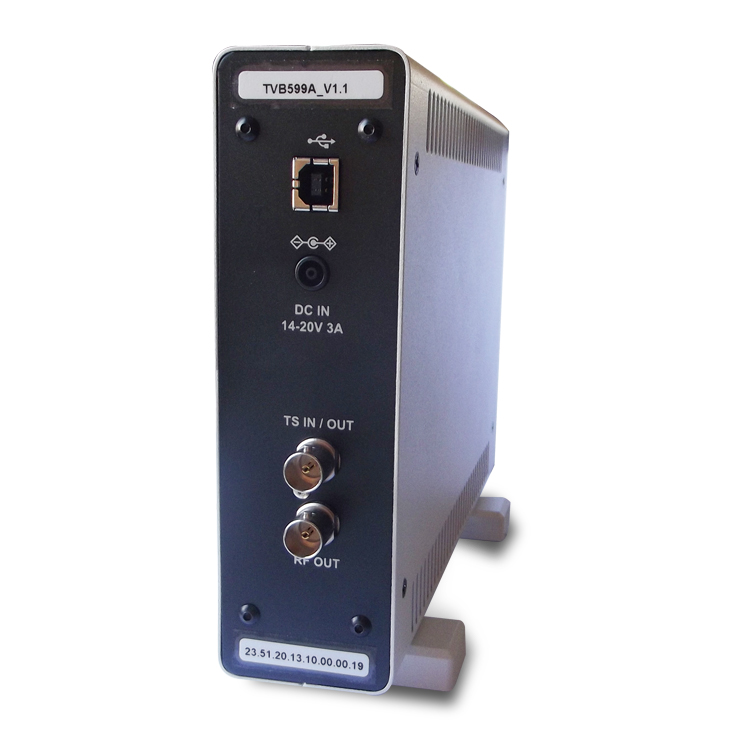

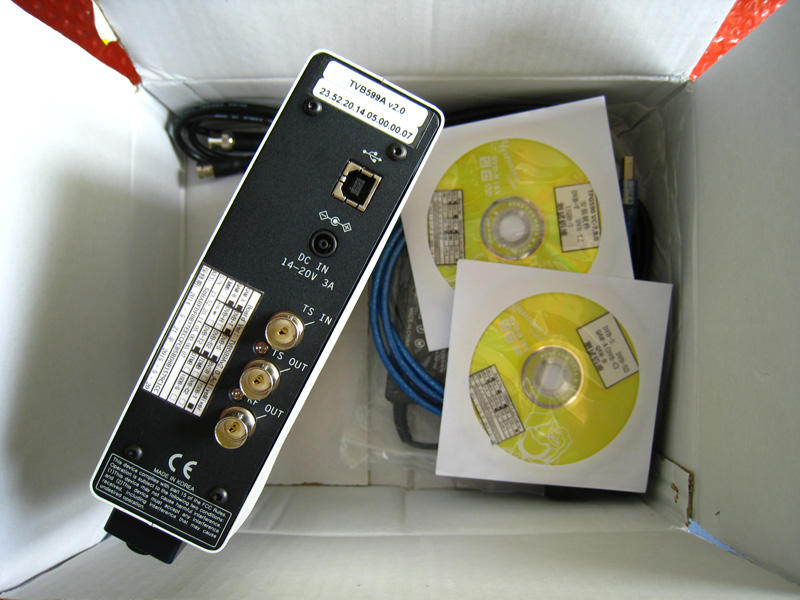

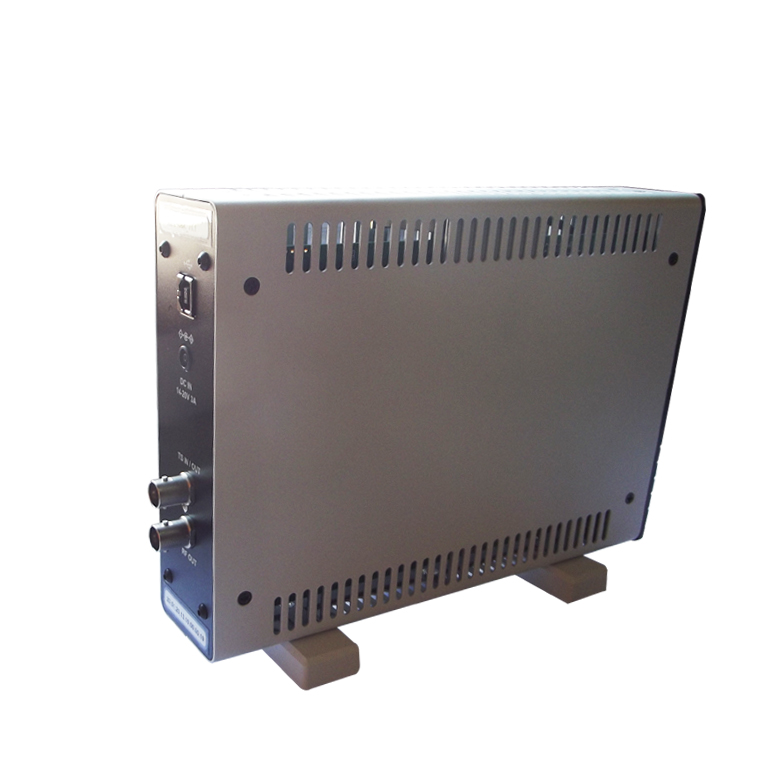

实物图：
