All-standard all-band modulator for USB-3

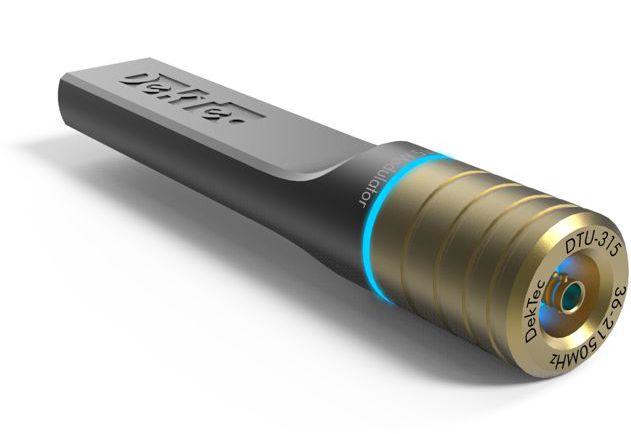

“Modulation has never been so easy and so beautiful. The DTU-315 is a portable modulator for satellite, terrestrial and cable, all in a single device.A good fit for laptop or tablet, but convenient with desktops and server PCs too.”
Supports all constellations and modulation modes for each supported standard.
Excellent signal quality through direct digital synthesis of the RF output signal.
No power supply required: A single USB-3 connection supplies power, real-time data and control.
DVB-T, DVB-T2 single PLP
ATSC 3.0 (in development)
DTMB (ADTB-T, DMB-T/H)
DVB-T2 multi PLP
ISDB-S, ISDB-T, ISDB-Tmm
General-purpose test modulator in your R&D lab for developing, qualifying or repairing any equipment with an antenna input.
Portable demo set for TV receivers, easy to carry to customer demos, trade shows, etc.
TV distribution using modulated signals in shops, hotels, hospitals etc.

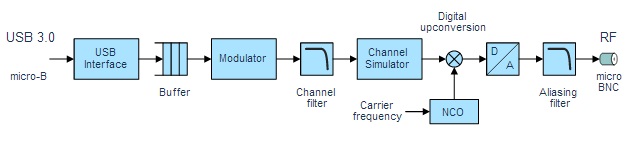

The DTU-315 reads data from USB and forwards it to a baseband modulator, a channel filter, an optional channel simulator and an upconverter. The digital RF signal is converted to analog with a high-speed D-to-A converter and output on a micro-BNC connector.
