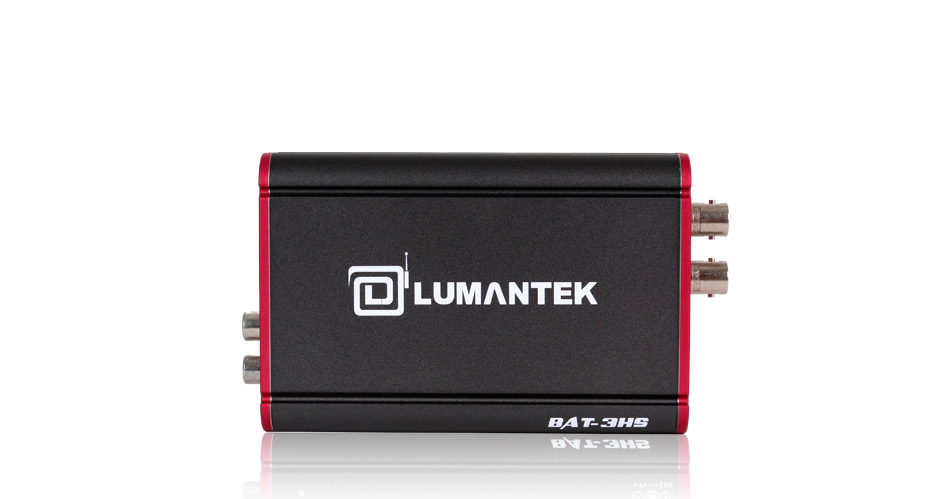

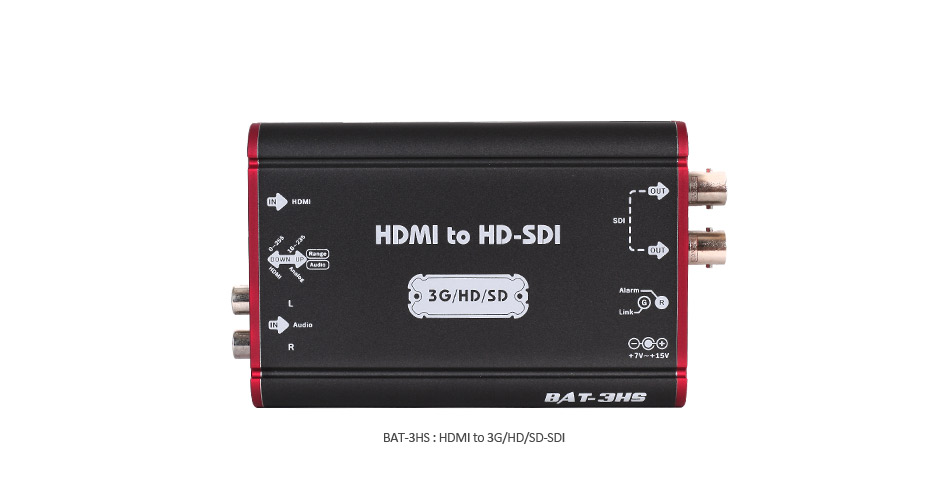

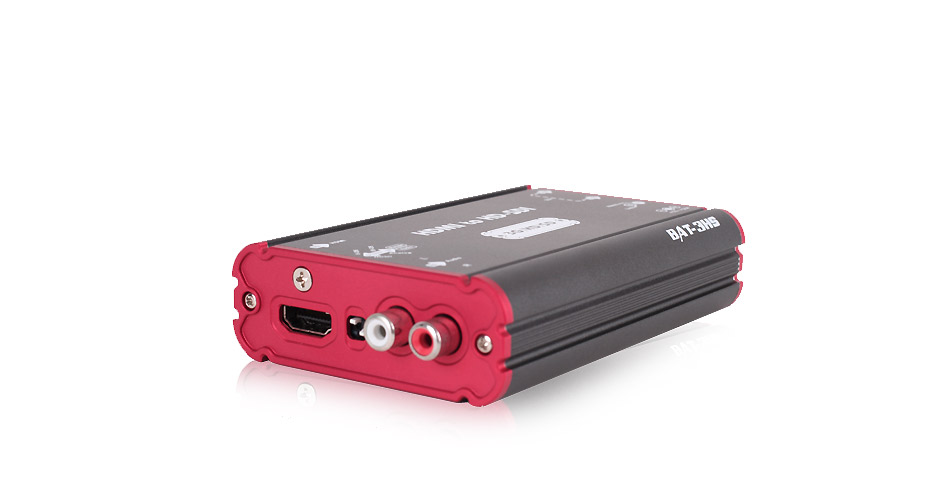

LUMANTEK HDMI to 3G/HD/SD-SDI Converter

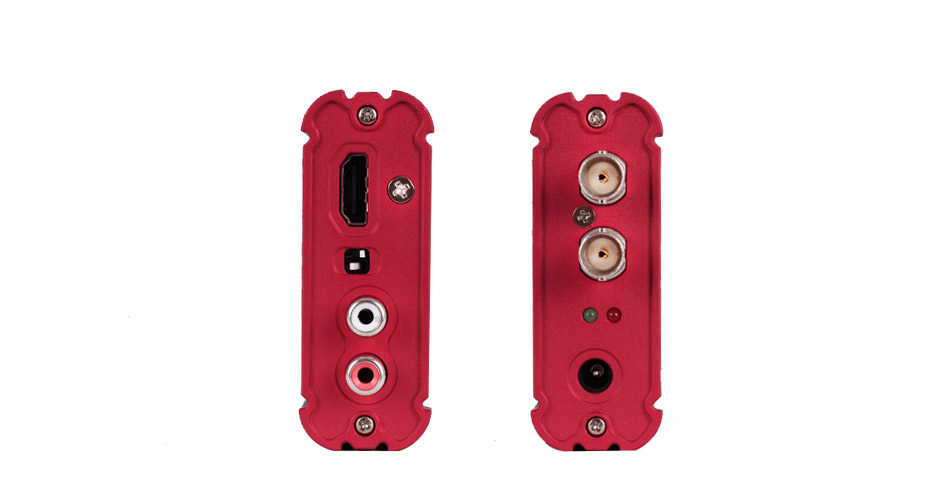

KEY FEATURES Auto detection mode (3G/HD/SD) Re-clocked loop-through 3G/HD/SD-SDI output [BNC 75 ohm] HDMI v1.3 compliant Supports 8 audio channels (4 stereo pairs) - 48kHz sample rate Additional analog stereo audio input (Left RCA : White, Right RCA : Red) Selectable luminance range(0-255/16-235) by DIP switch Selectable HD/SD color space conversion by DIP switch
|
|
- 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50
- 1280 x 720p @ 50, 1280 x 720p @ 59.94/60
- 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60
- 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30
- 1920 x 1080p @ 50, 1920 x 1080p @ 59.94/60
|
|
|
- HDMI with embedded audio & auto mute when DVI input
|
|
|
- SMPTE-259/272/274/292/296/299/424/425 3G/HD/SD-SDI, 2 x BNC
|
|
|
- Supports 8 audio channels (4 stereo pairs)
- - when the input audio sample rate is 48kHz
- Supports 2 audio channels (1 stereo pair) - Auto detection of the input audio sample rate | |
