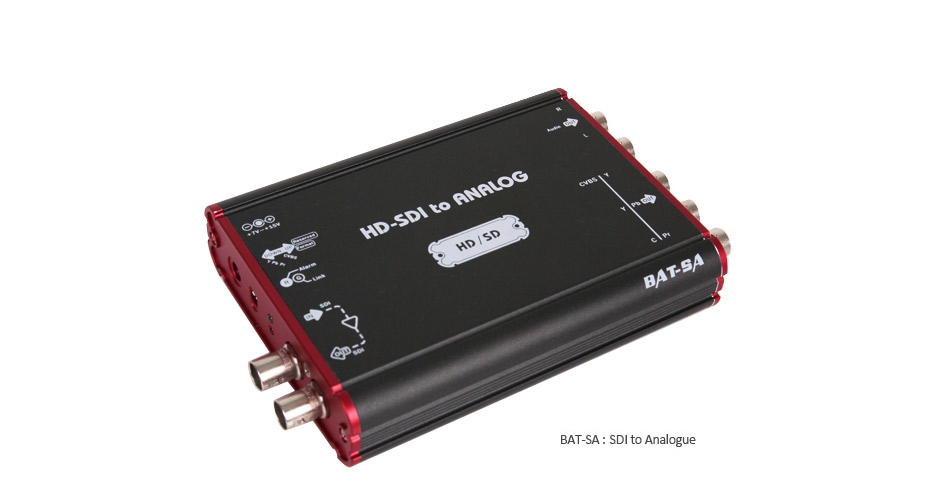

| HD-SDI to ANALOG Converter |
KEY FEATURES
Auto detection mode (HD/SD)
Re-clocked loop-through HD/SD-SDI output [BNC 75 ohm]
Component (YPbPr) or Composite (CVBS and S-Video) output [RCA]
Supports 2 audio channels (1 stereo pairs)
- 48kHz sample rate
- Left RCA: White, Right RCA: Red
Selectable Component (YPbPr) or Composite (CVBS and S-Video) by DIP switch
|
|
- 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50
- 1280 x 720p @ 50, 1280 x 720p @ 59.94/60
- 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60
- 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30
|
|
|
- HD and SD-SDI (auto-selected), SMPTE-259/272/274/292/296/299/424/425
- 1x BNC input, 1x BNC loop-through output
|
|
|
- Selectable Component (YPbPr) or Composite (CVBS and S-Video) by DIP switch
- NTSC and PAL support
- 3x BNC output
|
|
|
- 2 channels RCA-style analog outputs at -10dBv
|
|
|
|
