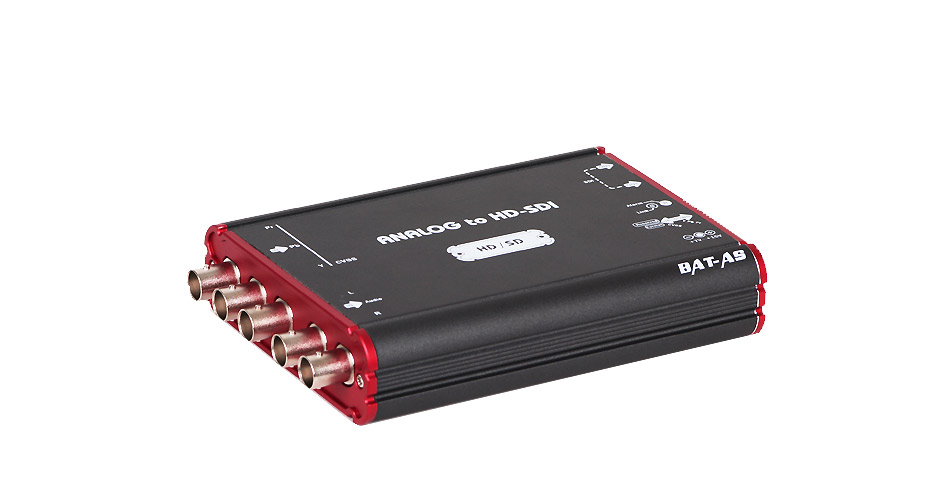

Lumantek ANALOG to HD-SDI Converter
KEY FEATURES
Auto detection mode (HD/SD)
Component (YPbPr) or Composite (CVBS or S-Video) input
HD/SD-SDI output x1 [BNC 75ohm]
Supports analog stereo audio iutput (Left RCA : White, Right RCA : Red)
Selectable luminance range(0~255/16~235) by DIP switch
Selectable HD/SD color space conversion by DIP switch
|
|
- 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50
- 1280 x 720p @ 50, 1280 x 720p @ 59.94/60
- 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60
- 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30
|
|
|
- HD Component (YPbPr) or SD Component/Composite/S-Video, 3x BNC
|
|
|
- SMPTE-259/272/274/292/296/299 HD/SD-SDI with embedded audio outputs, 1 x BNC
|
|
|
- 2 channels unbalanced, 2x RCA
|
|
|
|
|
|
|
|
