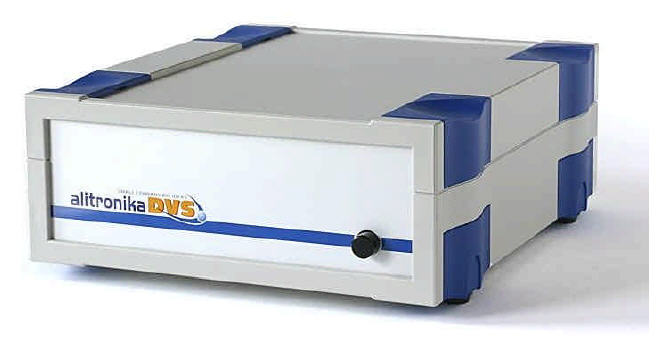

AT780USB



DVB-T2/T/C Receiver, Recorder & Converter
DVB-T2/T/C Input
DVB-ASI & DVB-SPI ( LVDS ) Outputs
DVB-T2/T/C to USB Converter
DVB-T to DVB-ASI/SPI Converter
Supports 6/7/8 MHz Bandwidth

Standard Features:

Combined DVB-T2/T/C Input and DVB-ASI/SPI Output Device.
High Speed USB 2.0
Windows XP, Vista, Windows 7 ( 64bit ) Drivers + SDK & Linux Drivers.
Accompanied by DVSStation3 Alitronika's Application Software.
Input
DVB-T2/T/C Compliant COFDM Reception.
Input Frequency Range:
- High Band: 434.0 MHz to 858.0 MHz.
- Mid Band: 149.5 MHz to 426.0 MHz.
- Low Band: 50.5 MHz to 142.5 MHz.
Modulation Modes: DVB-T/T2: QPSK, 16QAM, 64QAM
Modulation Modes: DVB-C: 64QAM, 128QAM, 256QAM
Guard Interval: DVB-T/T2: 1/4, 1/8, 1/16, 1/32
Supports hierarchical & non-hierarchical modes.
Supports 188, 204 Transport Packet Sizes.
Output
RF Loop Through Output.
Simultaneous two Serial ( ASI ) and one Parallel ( SPI ) Outputs.
Supports DVB According to Standard A1010 Rev1 and EN50083.

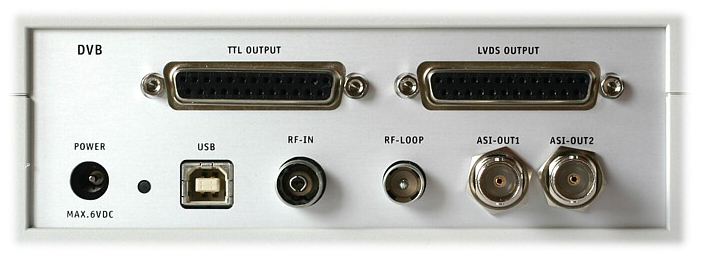

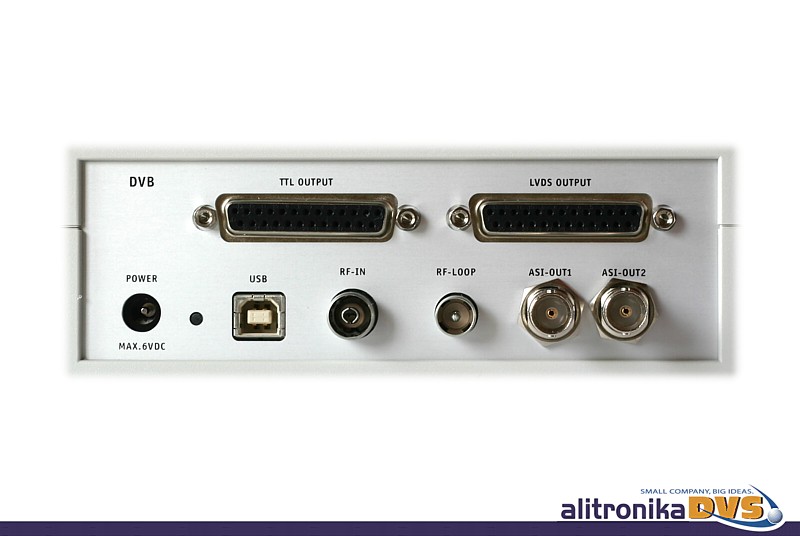

See all connection:

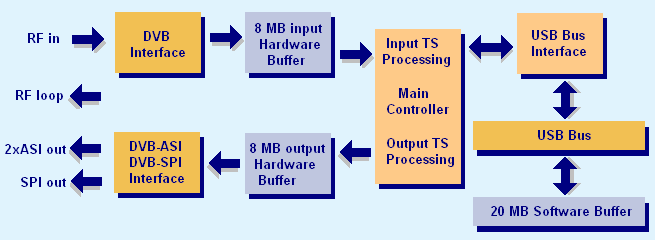

Block Diagram:
